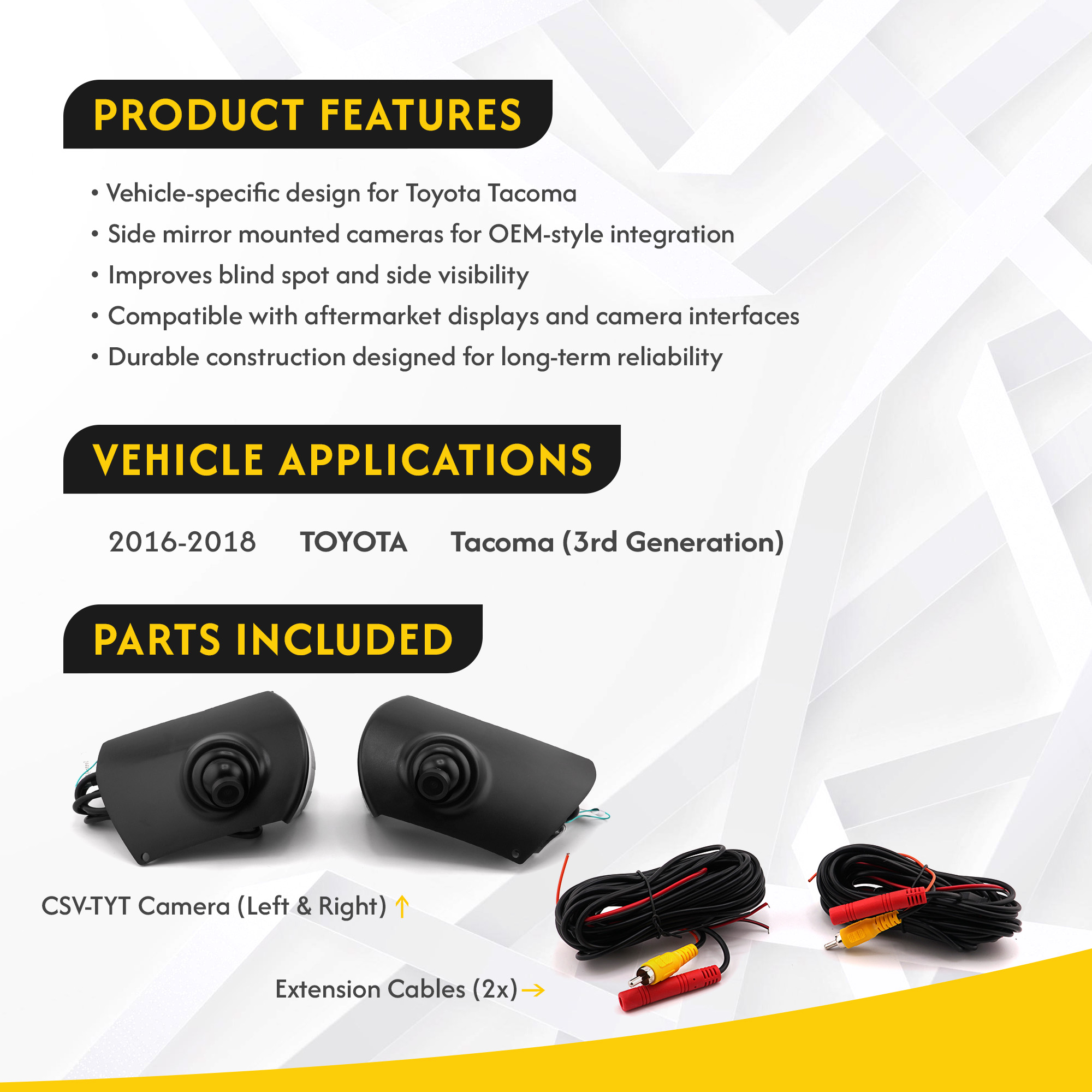

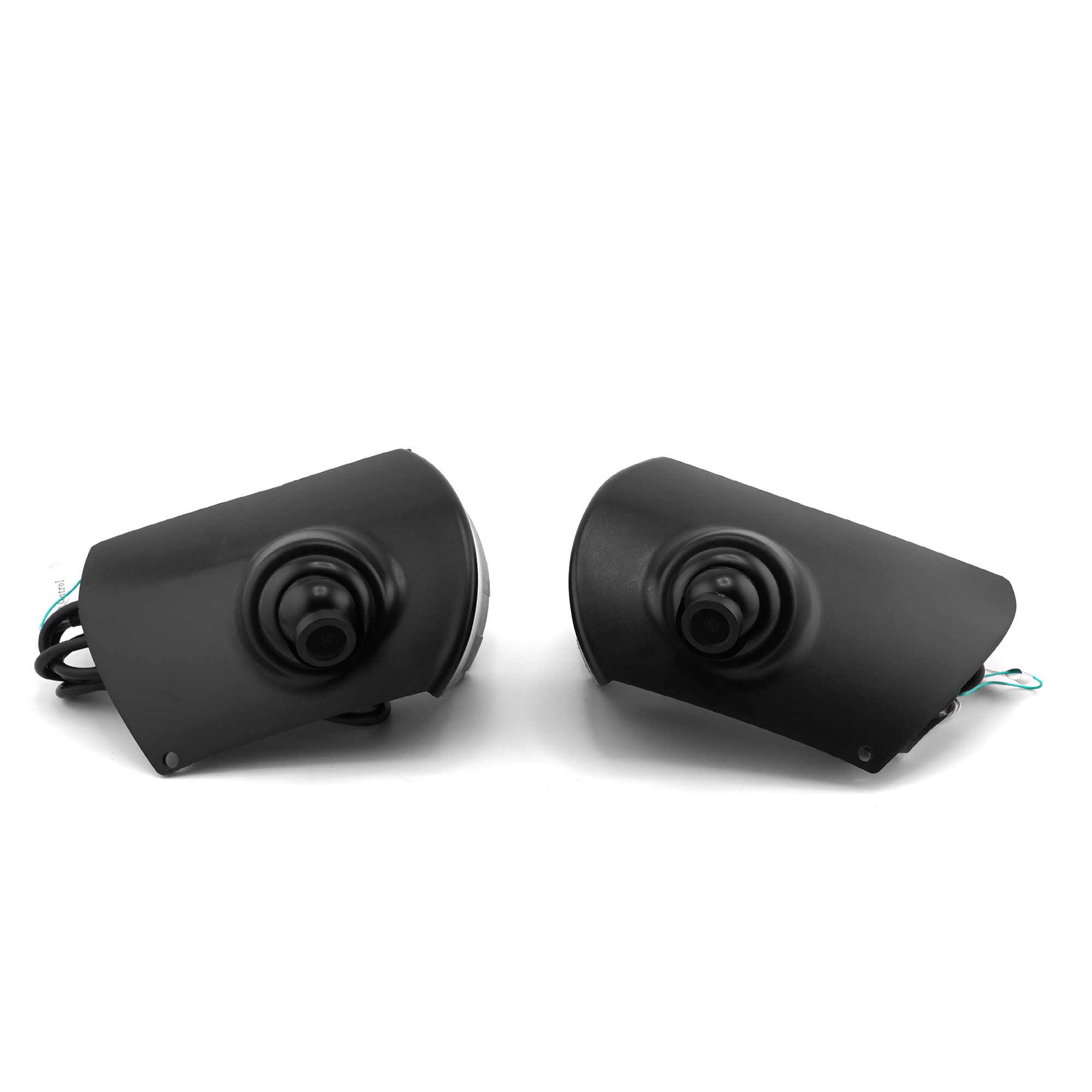

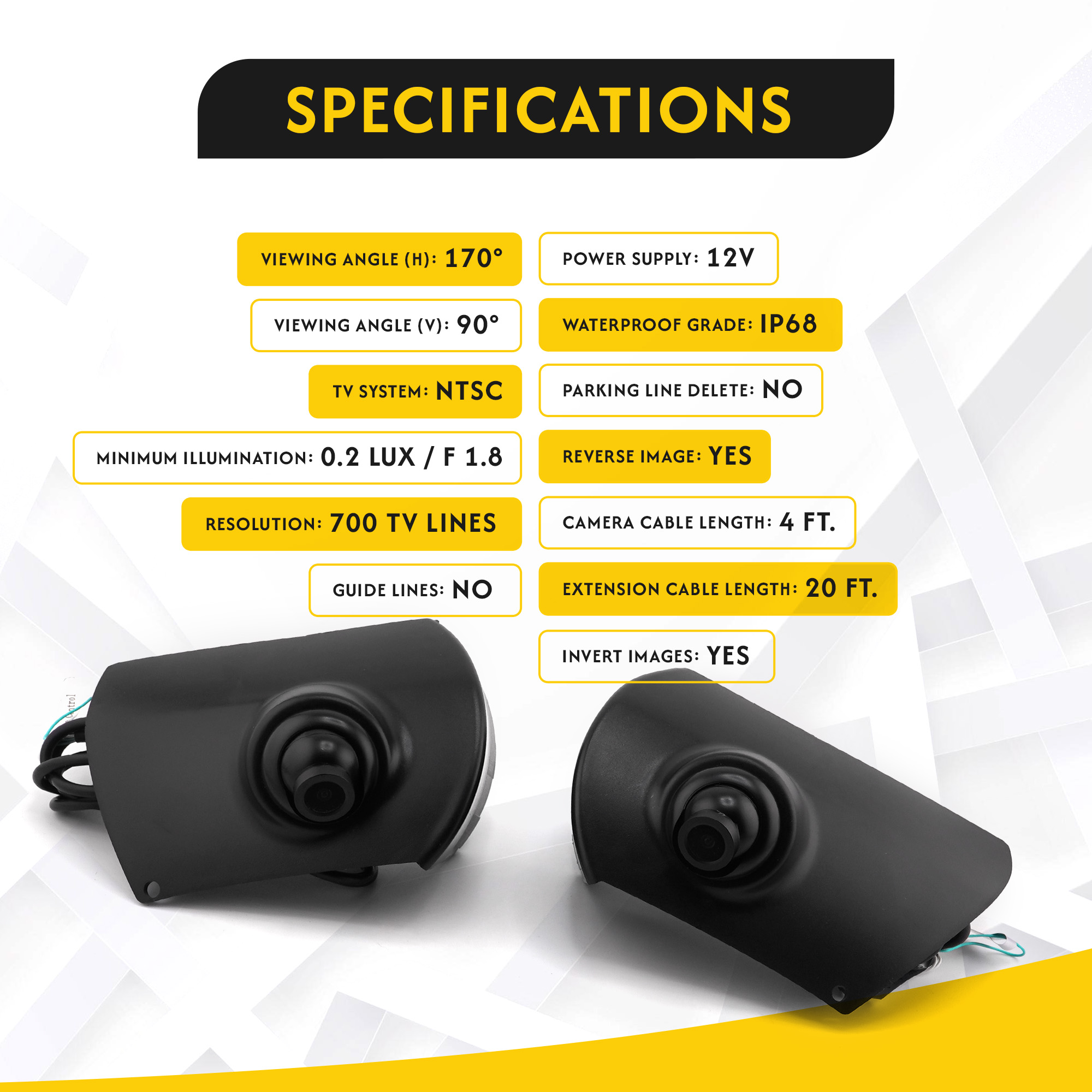

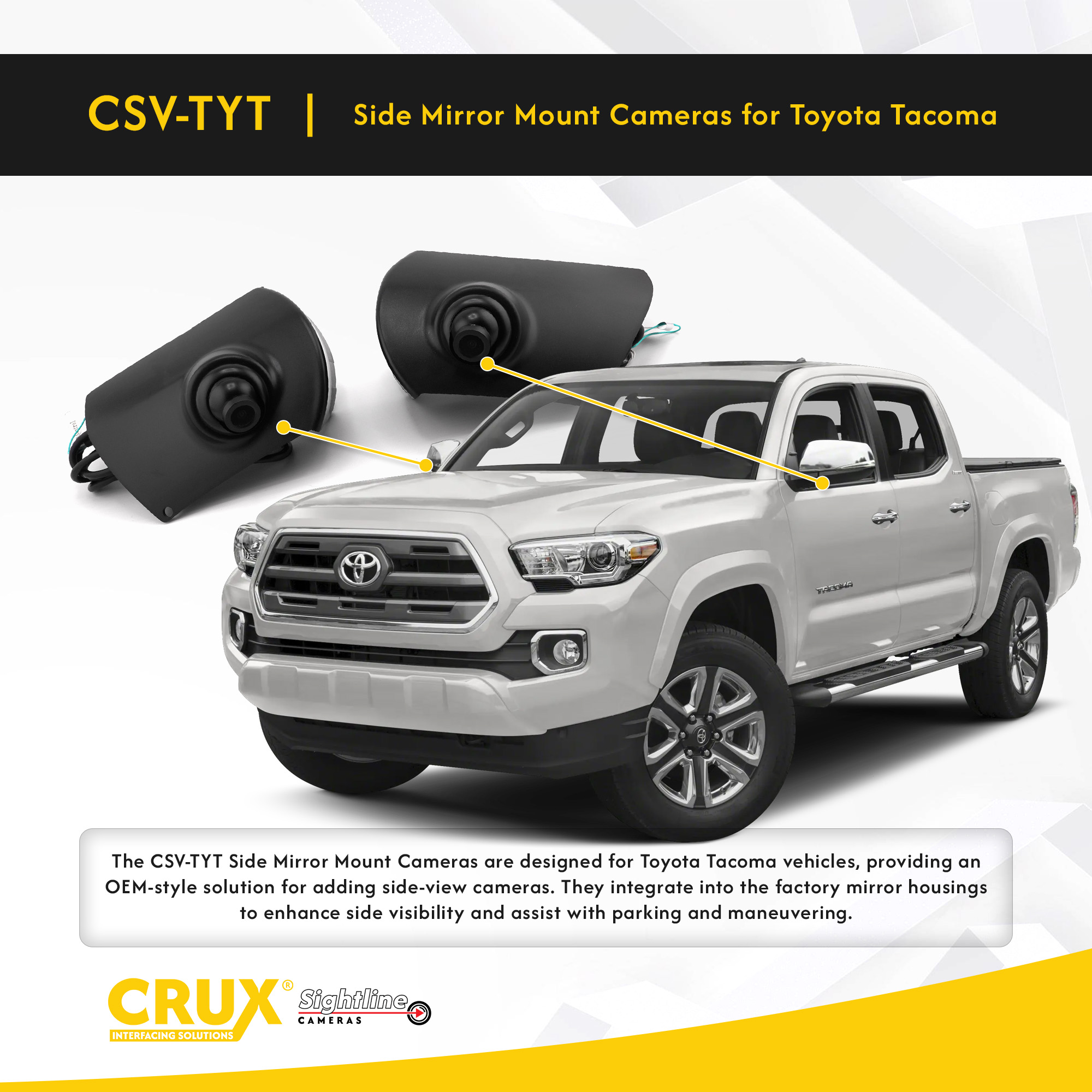

CSV-TYT | Side Mirror Mount Cameras for Toyota Tacoma

CSV-TYT | Side Mirror Mount Cameras for Toyota Tacoma

SKU: 08f74d4f455e
In stock

SENSOR APTINA
Image Device 1/3 CMOS PC2099
Effective Pixels 976(H) x 496(V)
Pixel Size 5.00um x 7.40um
Effective Image Area 4.88mm x 3.67mm
Interface - Composite Output - Digital Output - Analog/Digital Output CVBS (NTSC) YCbCr422/RGB565/ RGB444/Bayer ITU-R. BT1302/CVBS
Input Clock Frequency 27Mhz
Frame Rate 60field / sec @ NTSC 50 field / sec @ PAL
Sensitivity 10.8 [V/Lux.sec]
Power Supply 6V to 18V
Power Consumption 468mW @ Dynamic 363uW @ Standby
TV Lines 600TV lines
TV Systems NTSC
Operating Temperature -20℃ - +85℃ RH95% MAX
Storage Temperature -55℃ - +115℃ RH95% MAX

CSV-TYT | Side Mirror Mount Cameras for Toyota Tacoma

TOYOTA
2016 – 2018 Tacoma (3rd Generation)
