DKGM-49A| Radio Replacement w/ SWC Retention and Dash Kit for GM LAN 29 Bit Trucks & SUV's 2012-2014

DKGM-49A| Radio Replacement w/ SWC Retention and Dash Kit for GM LAN 29 Bit Trucks & SUV’s 2012-2014

SKU: 59aee406105c-1
In stock

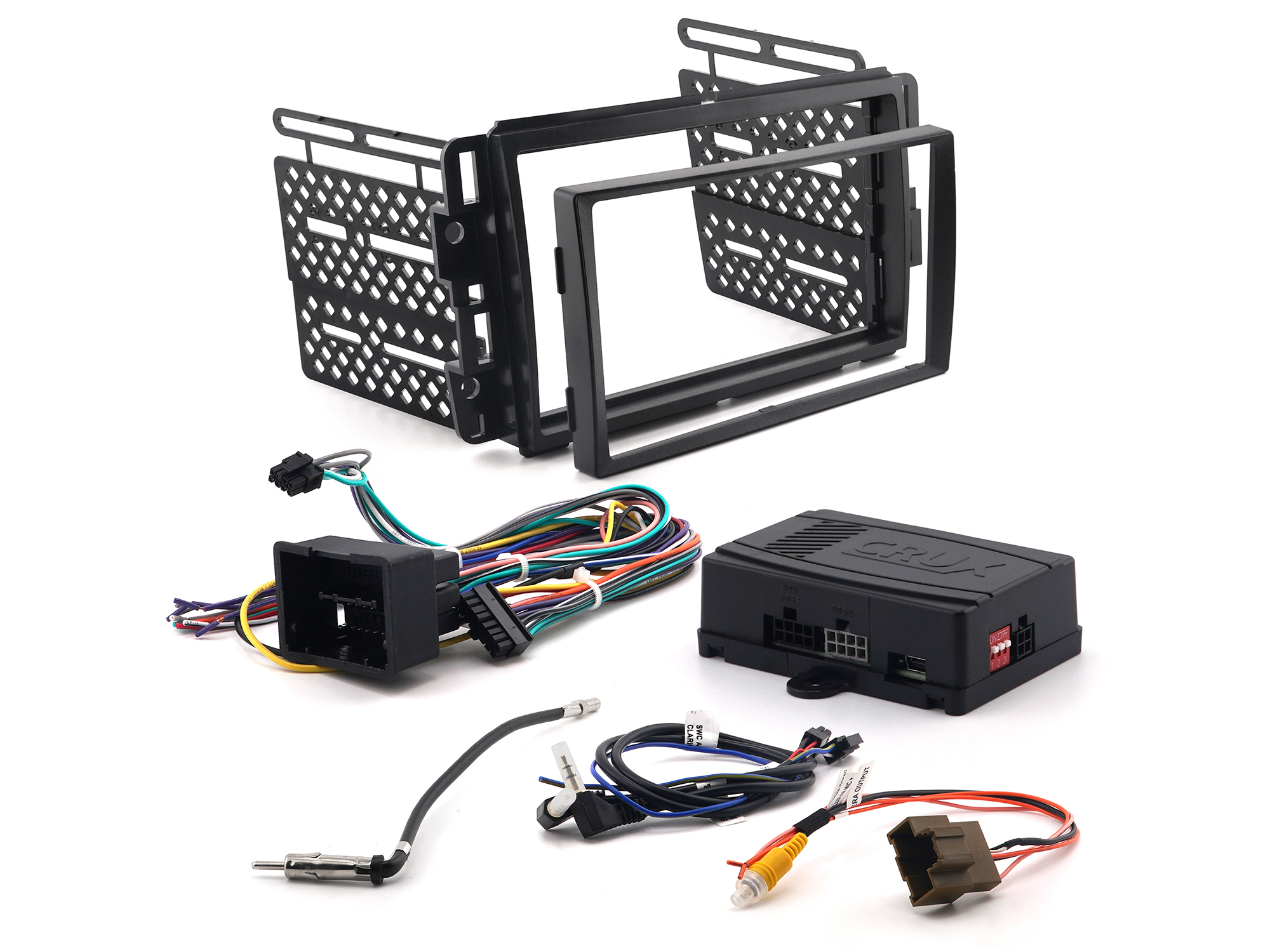

The CRUX DKGM-49A is a premium interface for select General Motors 2012-2014 Trucks & SUV's LAN 29-Bit Vehicles. It facilitates the integration of an after-market radio to fully retain factory features in GM LAN 29-Bit vehicles with Bose Amplified and Non-Amplified Systems. This interface has a 44 pin connector for select GM LAN29-Bit vehicles that have factory navigation. It also includes a double-din dash kit replacement. This enhanced interface is also pre-programmed for the retention of steering wheel controls.

– Retains factory features in select GM LAN 29 Bit trucks and SUVs while functioning with an aftermarket
radio.
– Pre-programmed to retain factory Steering Wheel Controls.
– iPhone Voice Recognition (VR) feature from SWC on select Kenwood, Pioneer, Alpine and JVC radios.
– Supports Pick Up/End Call, Pick-up and Toggle between 1st and 2nd incoming call, AVRCP Track,
Seek.
– Supports Bose, non-Bose and Y-91 audio systems.
– Retains chime functions.
– Provides Factory Rear Seat Entertainment Activation. Requires Cable #CRUX2333A (sold separately).
– Retains factory back-up camera.
– EIA color coded wiring for easy installation

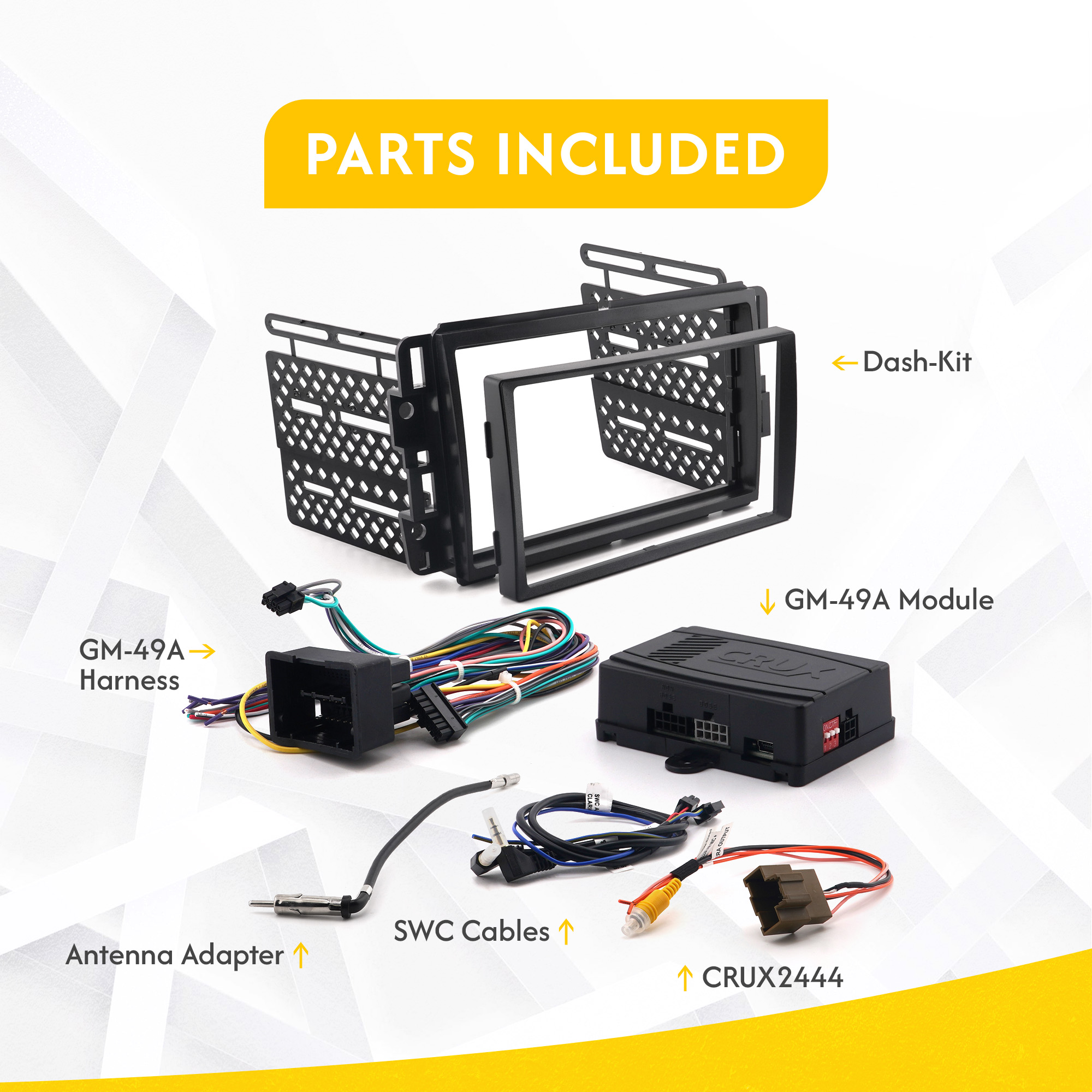

  DKGM-49A: Combo Category Includes Single-DIN Installation Kit with SWRGM-49A
CHEVROLET
2012-2013 Avalanche*
2012-2014 Silverado 1500-3500 Pickup*
2012-2014 Suburban*
2012-2014 Tahoe*
GMC
2012-2013 Sierra 1500-3500 Pickup*
2012-2014 Yukon*
1. *NOTE this kit is compatible with 2012-Up SUVs/Trucks that are equipped with factory-installed Navigation radios and have a 44 pin connector. If your vehicle has a 14 pin connector you will need the DKGM-49 kit.

4. DOES NOT support ONSTAR if you want retention of Onstar please purchase kit DKGM-16W

Additional Information

  • Retail SWC Controls
  • Reverse
  • Accessory
  • Antenna Retention
  • Voice Control
  • Plug & Play
  • Phone
  • Amplifier
  • CAN Bus
  • Camera Retention
  • Illumination
  • VSS
