SWRFD-60 | Radio Replacement w/ SWC Retention for Ford, Lincoln & Mercury Vehicles 2005-2016

SKU: 7950dc475166

In stock

The CRUX SWRFD-60 is a radio replacement interface for select 2007–2014 Ford, Lincoln, and Mercury vehicles. Retains factory steering wheel controls (both analog & Can-Bus), including Bluetooth buttons on SYNC-equipped models. Supports both amplified (Sony, Shaker, THX) and non-amplified systems. Maintains factory subwoofer, center channel speaker, and provides Vehicle Speed Sense, reverse, and illumination outputs. This improved version retains more features and applications and requires 1 hardware instead of two to retain both analog & Can-Bus steering wheel controls.

Compare

Add to wishlist

Features

Retains factory features with an aftermarket radio
Retains factory-installed Subwoofer
Retains Steering Wheel Controls via built-in, pre-programmed interface
With navigation outputs (Reverse gear, Illumination and Speed signal)
Provides Accessory Power (2A MAX)

*Note: Does not retain SYNC

Compatibility

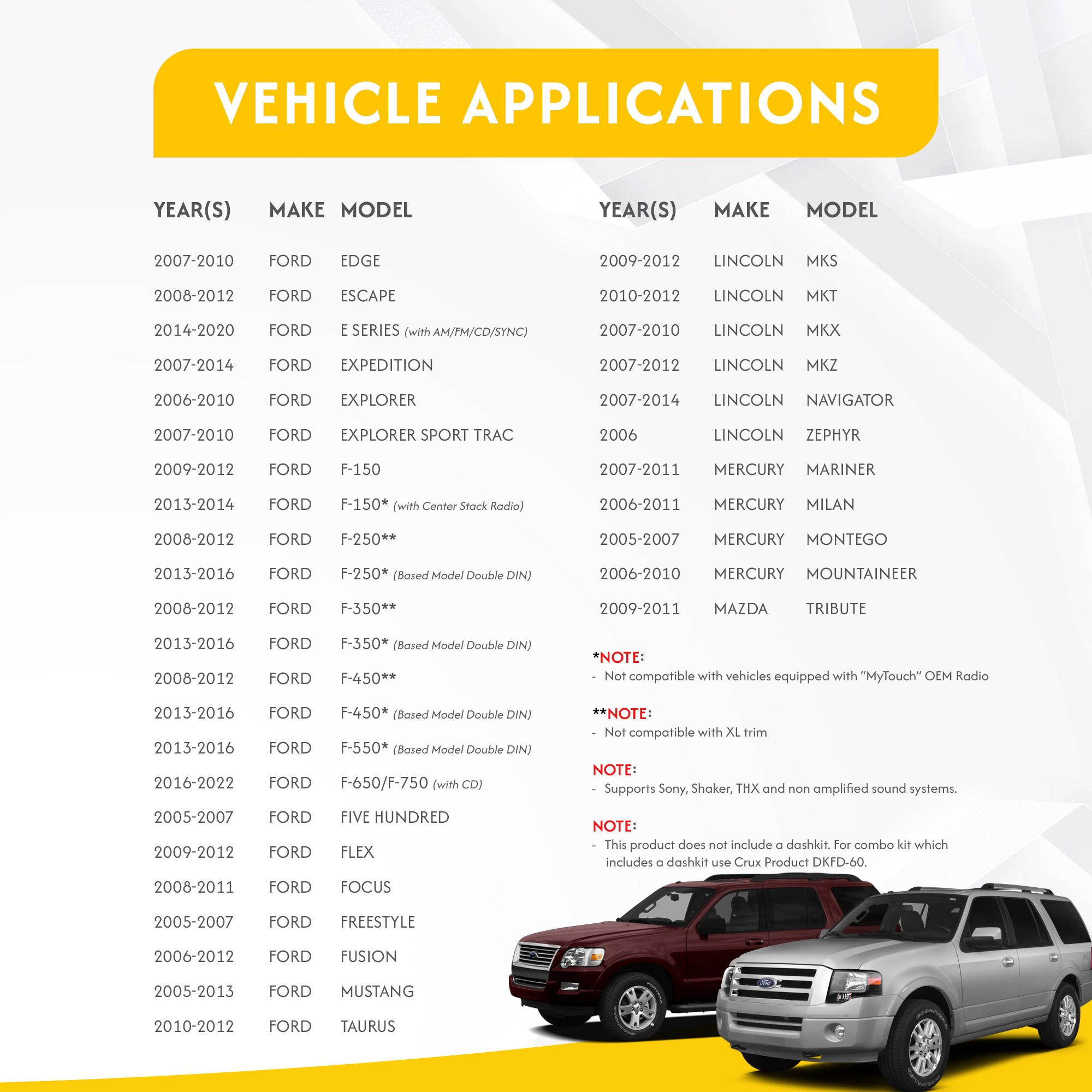

VEHICLE COMPATIBILITY

FORD

2007 – 2010 Edge
2008 – 2012 Escape
2014 – 2020 E Series (w/ AM/FM/CD/Sync OEM radio)
2007 – 2014 Expedition
2006 – 2010 Explorer
2007 – 2010 Explorer Sport Trac
2009 – 2012 F-150
2013 – 2014 F-150* (w/ center stack OEM radio)
2008 – 2012 F-250**
2013 – 2016 F-250* (Base Model Double Din)
2008 – 2012 F-350**
2013 – 2016 F-350* (Base Model Double Din)
2008 – 2012 F-450**
2013 – 2016 F-450* (Base Model Double Din)
2013 – 2016 F-550* (Base Model Double Din)
2016 – 2022 F-650 (equipped with CD Player)
2016 – 2022 F-750 (equipped with CD Player)
2005 – 2007 Five Hundred
2009 – 2012 Flex
2008 – 2011 Focus
2005 – 2007 Freestyle
2006 – 2012 Fusion
2005 – 2013 Mustang
2008 – 2012 Taurus

LINCOLN

2009 – 2012 MKS
2010 – 2012 MKT
2007 – 2010 MKX
2007 – 2012 MKZ
2007 – 2014 Navigator
2006 – 2006 Zephyr

MAZDA

2009 – 2011 Tribute

MERCURY

2007 – 2011 Mariner
2006 – 2011 Milan
2005 – 2007 Montego
2006 – 2010 Mountaineer

*NOTE: Not compatible with vehicles equipped with “MyTouch” OEM Radio

**NOTE: Not compatible with XL trim

Compatible audio Systems:

Supports Sony, Shaker, THX and non-amplified sound systems.

This product does not include a dash kit. For combo kit which includes a dash kit use Crux Product DKFD

*Note: Does not retain SYNC but if you have new hardware bluetooth steering wheel controls can be retained if vehicle has SYNC by tapping into SYNC module

*Note: This kit provides both CAN and Analog modules. To determine which module you need please read the instructions on the manual (page 2) HOW TO DETERMINE IF THE VEHICLE HAS ANALOG SWC. If you determine that your vehicle is not analog then please connect the Can module
