DKGM-16W | OnStar Radio Replacement Interface w/ SWC Retention, Video Switcher & Double Din Dash Kit for Select GM LAN-29 Bit SUVs & Trucks w/ Nav Radios & w/ Bose Amplified & Non-Amplified Systems

New

DKGM-16W | OnStar Radio Replacement Interface w/ SWC Retention, Video Switcher & Double Din Dash Kit for Select GM LAN-29 Bit SUVs & Trucks w/ Nav Radios & w/ Bose Amplified & Non-Amplified Systems

In stock

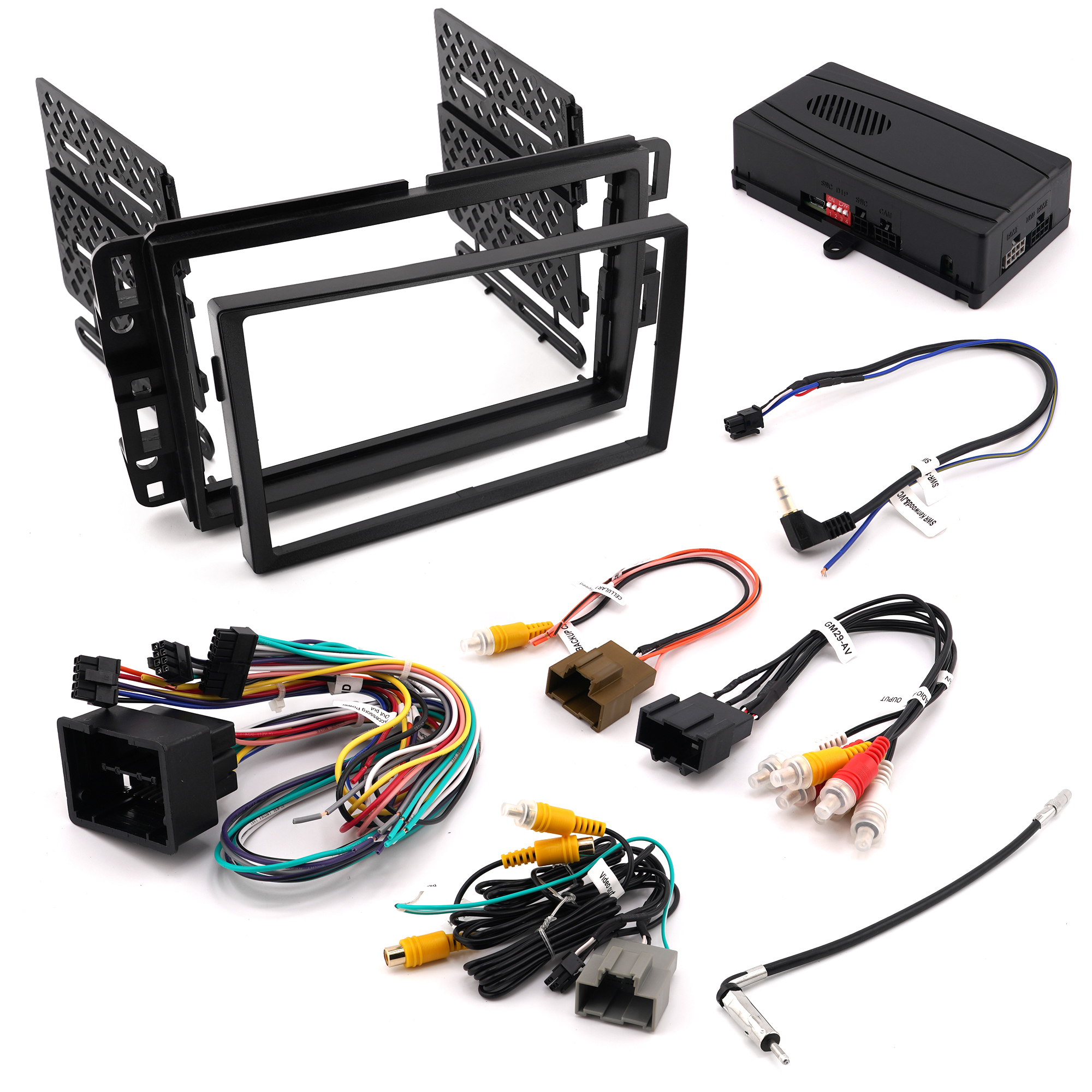

The CRUX DKGM-16W is an OnStar Replacement interface for select General Motors 2012-2014 Trucks & SUV's LAN 29-Bit Vehicles. It facilitates the integration of an after-market radio to fully retain factory features in GM LAN 29-Bit vehicles with Bose Amplified and Non-Amplified Systems. This interface has a 44 pin connector for select GM LAN29-Bit vehicles that have factory navigation. It also includes a double-din dash kit replacement. This enhanced interface is also pre-programmed for the retention of steering wheel controls and adds camera switching capability for forced front-view & rear-view cameras.

  • Easy Plug-and-Ready Connections.
  • Retains factory features in select GM LAN 29 Bit vehicles while functioning with an aftermarket radio
  • Retains Steering Wheel Controls via built-in, pre-programmed interface.
  • Retains Factory OnStar, factory rear view camera, & factory warning chimes
  • Adds Forced Rear view and Front view camera while in motion using the factory side mirror controls
  • Works with  Non-Bose, BOSE, & Y-91 amplified systems.
  • Retains Rear Seat Entertainment, Audio/Video. Requires Cable #CRUX2333A (sold separately).
  • EIA color coded wiring for easy installation

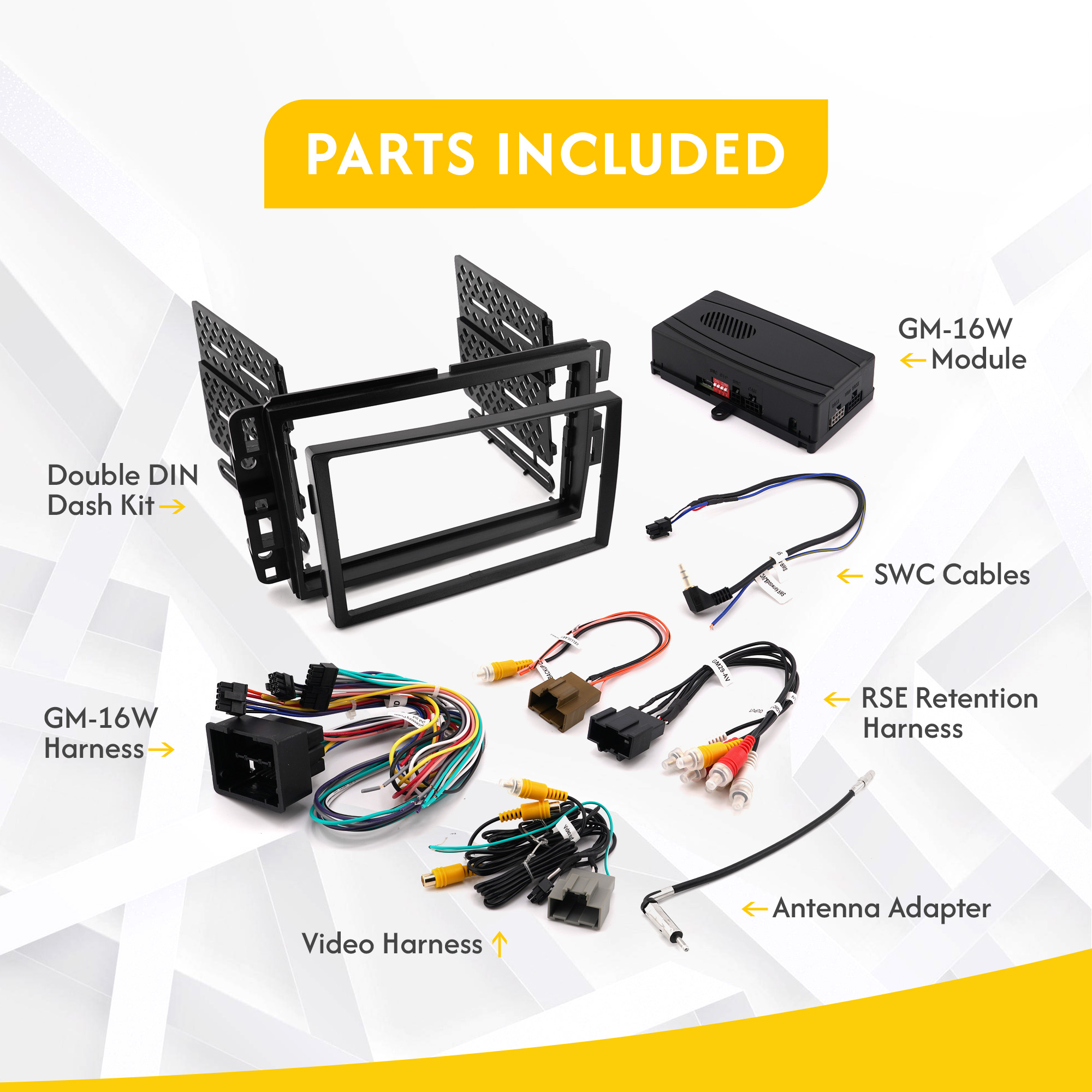

  • Includes Double DIN Dash Kit



Notes:

  1. The Front and Rear fading are not retained on Y-91 Bose System
  2. Chime includes: seat belt, check engine, key in ignition, low fuel, low oil, and lights on
DKGM-16W

Chevrolet

2012 – 2013 Avalanche

2012 – 2014 Silverado 1500-3500 Pickup

2012 – 2014 Suburban

2012 – 2014 Tahoe

GMC

2012 – 2014 Sierra 1500-3500 Pickup

2012 – 2014 Yukon
