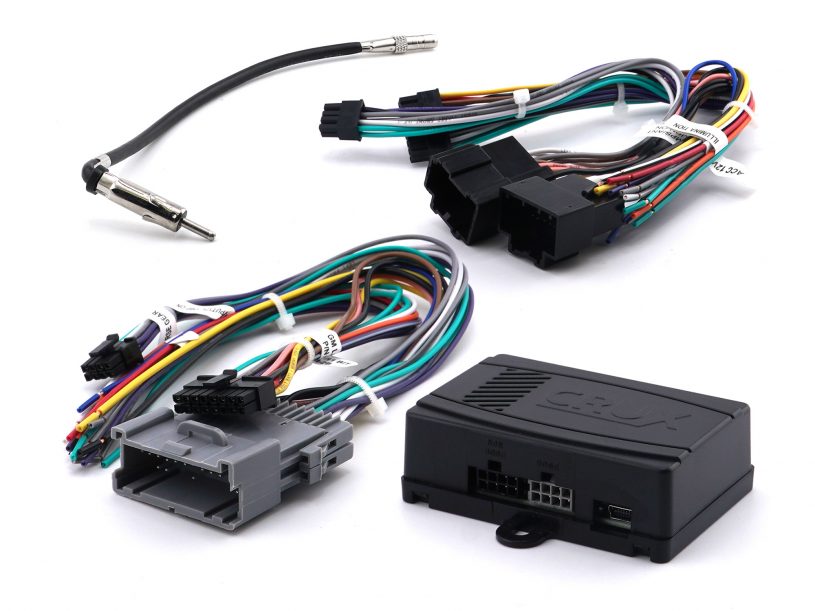

SOCGM-18B | Radio Replacement Interface for General Motors LAN 11-Bit Systems w/ Bose Amplified & Non-Amplified Systems

SOCGM-18B | Radio Replacement Interface for General Motors LAN 11-Bit Systems w/ Bose Amplified & Non-Amplified Systems

SKU: 5cfe9b8fb129
In stock
The CRUX SOCGM-18B retains General Motors factory-featured safety and warning chimes — for installation of after-market radios. It provides 12 Volt Accessory output (4 Amp), including RAP (Retained Accessory Power), Illumination Output (2A. max), telephone negative mute trigger (output to new stereo), low voltage (battery run-down protection), and adjustable chime volume.

  • Retains factory features in select GM LAN 11-Bit vehicles with aftermarket radios
  • Supports Bose, non-Bose and Y-91 audio systems.
  • Retains factory front and rear parking sensors.
  • Retains safety and warning chime functions.
  • Adjustable Chime Volume
  • EIA color coded wiring for easy installation.

Note: Please confirm the above options prior to removing the factory radio. Some features may have to be turned on using factory menu options.

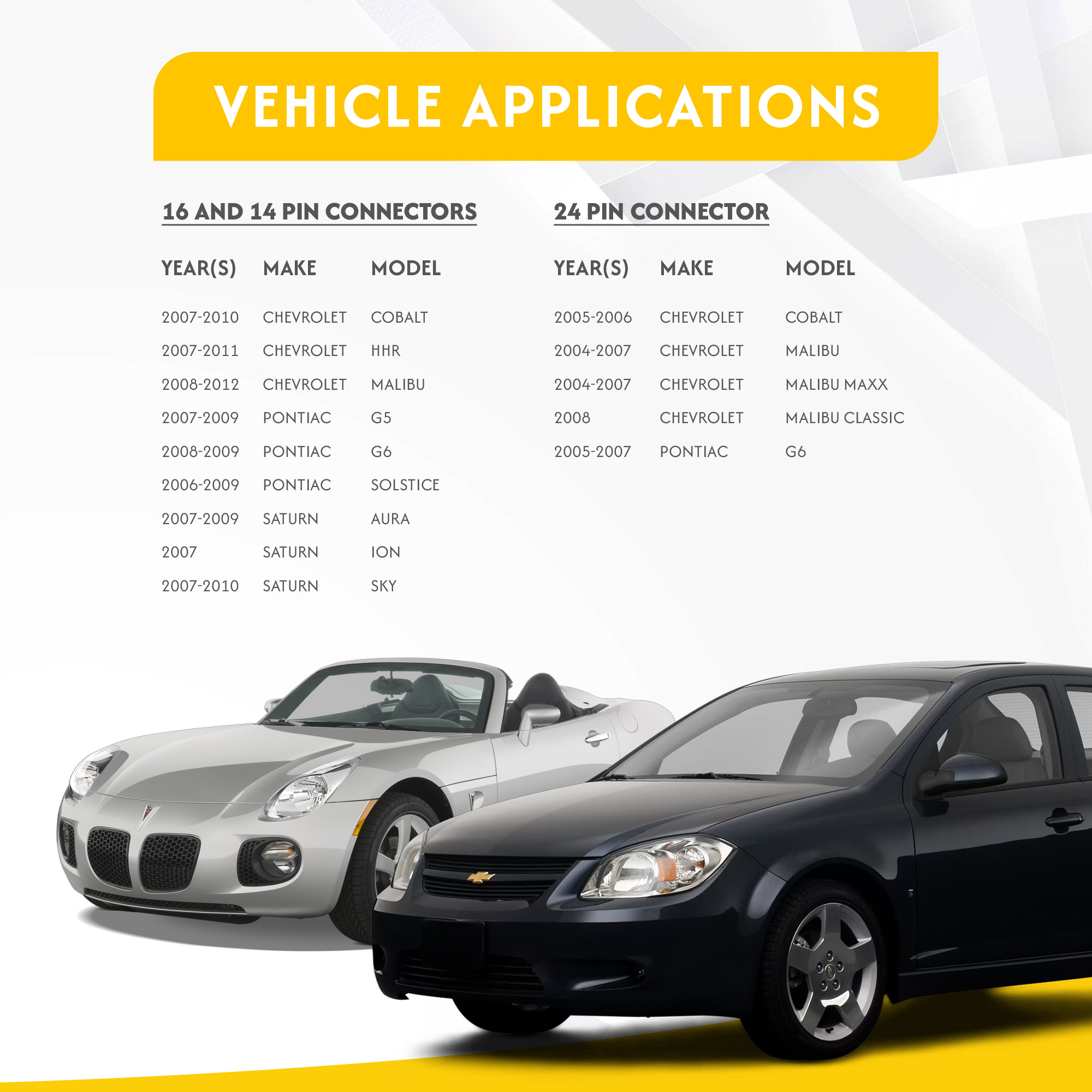

Works with the following vehicles, listed in conjunction with the accompanying harnesses:

USE THE 14-PIN & 16-PIN HARNESS FOR

Chevrolet
2007 – 2010 Cobalt
2007 – 2011 HHR
2008 – 2012 Malibu

Pontiac
2005 – 2009 G5
2008 – 2009 G6
2006 – 2009 Solstice

Saturn
2007 – 2009 Aura
2007 – 2007 Ion
2007 – 2010 Sky

USE THE 24-PIN HARNESS FOR

Chevrolet
2005 – 2006 Cobalt
2004 – 2007 Malibu
2004 – 2007 Malibu Maxx
2008 – 2008 Malibu Classic



Additional Information

  • Reverse
  • Accessory
  • Antenna Retention
  • Plug & Play
  • CAN Bus
  • Illumination
