DKGM-49| Radio Replacement w/ SWC Retention and Dash Kit for GM LAN 29 Bit Vehicles 2006 - 2015

DKGM-49| Radio Replacement w/ SWC Retention and Dash Kit for GM LAN 29 Bit Vehicles 2006 – 2015

SKU: 59aee406105c
In stock

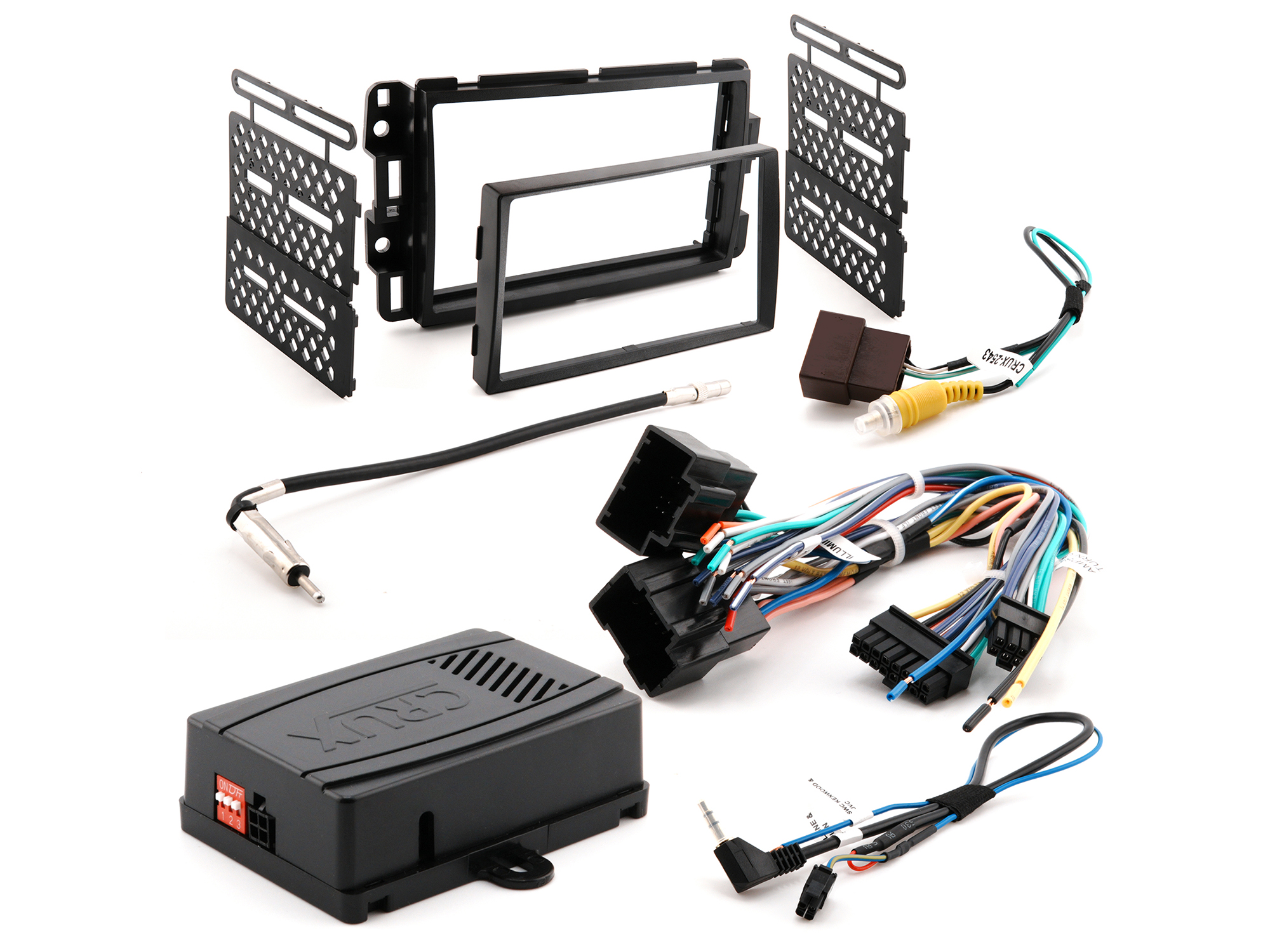

The CRUX DKGM-49 is a premium interface for select General Motors LAN 29-Bit Vehicles. It facilitates the integration of an after-market radio to fully retain factory features in GM LAN 29-Bit vehicles with Bose Amplified and Non-Amplified Systems. It also includes a double-din dash kit replacement. This enhanced interface is also pre-programmed for retention of steering wheel controls.

  • Retains factory features in select GM LAN 29 Bit vehicles while functioning with an aftermarket radio.

  • Pre-programmed to retain factory Steering Wheel Controls.

  • iPhone Voice Recognition (VR) feature from SWC on Kenwood, Pioneer, Alpine and JVC radios.

  • Supports Pick Up/End Call, Pick Up and Toggle between 1st and 2nd Incoming call, AVRCP Track, Seek.

  • Supports Bose, non-Bose and Y-91 audio systems.

  • Provides Factory Rear Seat Entertainment Activation. Requires Cable #CRUX2333A (sold separately).

  • Retains factory front and back park assist system.

  • Retains chime functions.

  • EIA color coded wiring for easy installation.

DKGM-49: Combo Category Includes Single-DIN Installation Kit with SWRGM-49
2008-2017 Enclave
2006-2011 Lucerne


2006-2011 DTS
2007-2014 Escalade
2007-2009 SRX


2007-2013 Avalanche*
2007-2008 Equinox
2008-2016 Express Van**
2006-2013 Impala / Impala SS2014 – 2016 Impala Classic
2006-2007 Monte Carlo
2007-2013 Silverado 1500-3500 Pickup*
2007-2014 Suburban*
2007-2014 Tahoe*
2009-2017 Traverse
2007-2016 Acadia2017            Acadia Classic
2008-2017 Savana**
2007-2013 Sierra 1500-3500 Pickup*
2007-2014 Yukon*


2008-2009 H2


2007-2009 Torrent


2007-2010 Outlook
2008-2009 Vue


2007-2008 XL7
1. *NOT compatible with 2012-Up SUVs/Trucks that are equipped with factory-installed Navigation radios.

2. **NOT compatible with Express and Savana vans that are powered by a diesel engine.

3. Supports Rear Entertainment System with special order harness #CJA2333A (sold separately).

4. DOES NOT support ONSTAR.
